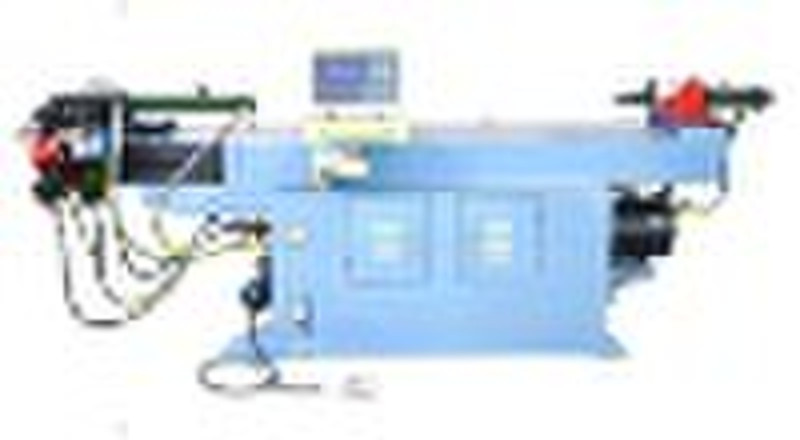

Pipe bending machine

Technical capacity and specification: Specification/Model Unit EM63NC Remark Max bending capability mm Φ63×4 1. The Minimum bending diameter based on the pipe diameter 2.The Max bending diameter can according to the customer’s requirement 3.The Max length of mandrel can according to customer’s requirement Max bending radius mm R350 Min bending radius mm R25 Max bending angle Degree 190 Max effective distance of mandrel mm 2600 Control System NC Control Max elbow bend pipe Unit 16 Max storable sections Unit 16×16 Motor power KW 5.5 Max. Hydraulic Pressure Mpa 12 Hydraulic System Control Electromagnetic Valve Oil Tank Capacity L 220 Measurement mm 3200×750×1100 Weight of Machine Kg 1500 Time of Shipment: No later than 25 days since receiving the advance payment. Terms of Payment: 30% payment TT before production, 70% payment balances T/T before shipment. Packaging: Iron case Warranty period: we guarantee machine quality for one year. During this year, if spare parts of the machine were damaged, we supply to buyers for free.
